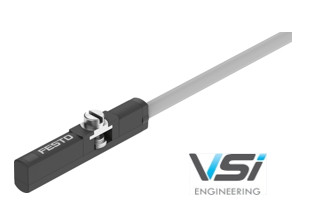

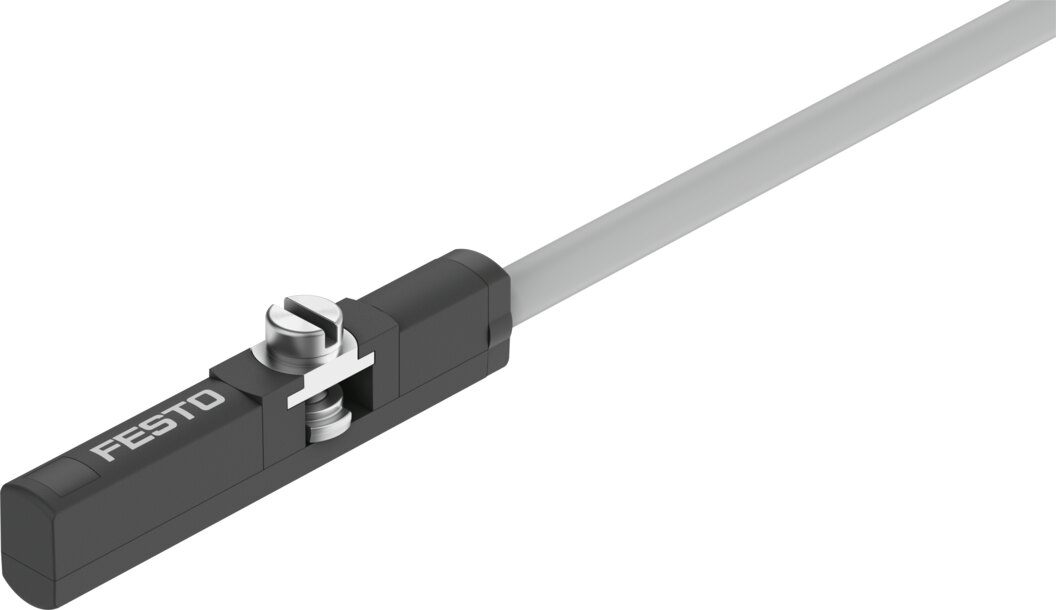

Design
|
For C-slot
|
|
Conforms to standard
|
EN 60947-5-2
|
|
Symbol
|
00991144
|
|
Approval
|
RCM trademark
|
|
CE mark (see declaration of conformity)
|
To EU EMC Directive
In accordance with EU RoHS Directive
|
|
CE marking (see declaration of conformity)
|
To UK instructions for EMC To UK RoHS instructions
|
|
KC mark
|
KC-EMV
|
|
Special characteristics
|
Oil resistant
|
|
Note on materials
|
RoHS-compliant
Free of halogen
Free of copper
|
|
Instructions on use
|
Cable flame-protected and flame-retardant as per UL Standard 758 Horizontal Flame Test, does not comply with fire protection to IEC 61010-1:2017, Edition 3.1, Section 9.3.
|
|
Variants
|
Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils.
|
|
Measured variable
|
Position
|
|
Measuring principle
|
Magneto-resistive
|
|
Ambient temperature
|
-10 °C ... 70 °C
|
|
Repetition accuracy
|
0.2 mm
|
|
Switching output
|
Non-contacting, 2-wire
|
|
Switching element function
|
N/O contact
|
|
Switch-on time
|
≤2.5 ms
|
|
Switch-off time
|
≤2.5 ms
|
|
Max. switching frequency
|
480 Hz
|
|
Max. output current
|
50 mA
|
|
Max. switching capacity DC
|
1.4 W
|
|
Voltage drop
|
≤2.65 V
|
|
Short circuit current rating
|
no
|
|
Overload protection
|
Not available
|
|
Rated operational voltage DC
|
24 V
|
|
Operational voltage range DC
|
10 V ... 28 V
|
|
Reverse polarity protection
|
no
|
|
Electrical connection 1, connection type
|
Cable
|
|
Electrical connection 1, connector system
|
Open end
|
