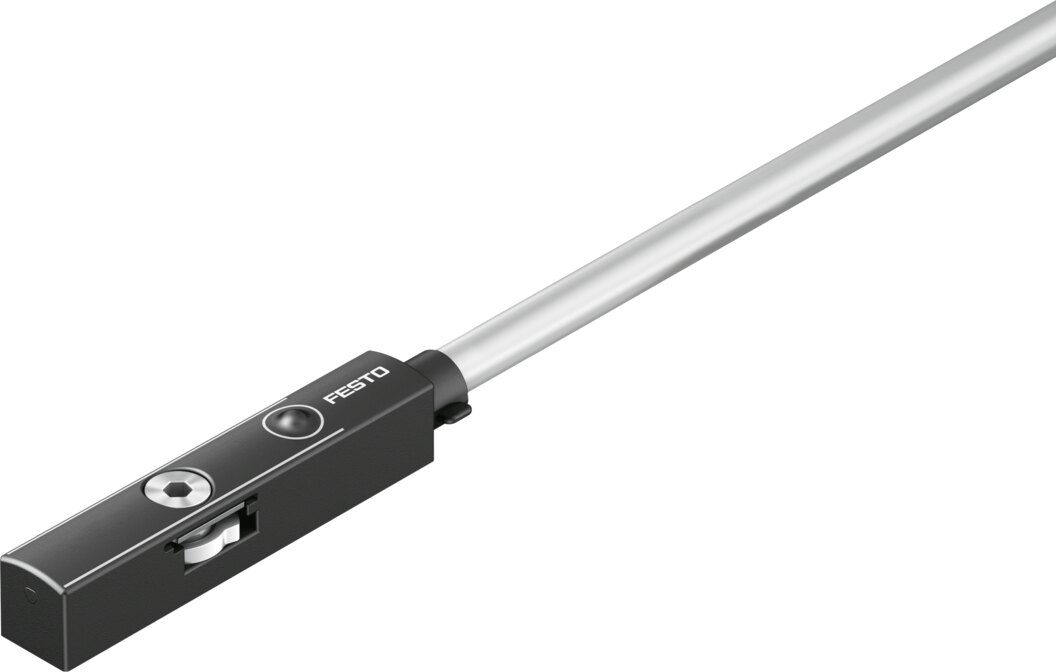

SDBT-MSX-1L-PU-E-0.3-N-M8
|
Design
|
For T-slot
|
|
Based on standard
|
EN 60947-5-2
|
|
Symbol
|
00995962
|
|
Approval
|
RCM trademark
c UL us listed (OL)
|
|
CE mark (see declaration of conformity)
|
To EU EMC Directive
In accordance with EU RoHS Directive
|
|
CE marking (see declaration of conformity)
|
To UK instructions for EMC To UK RoHS instructions
|
|
Certificate issuing authority
|
UL E232949
|
|
Note on materials
|
RoHS-compliant Free of halogen
|
|
Instructions on use
|
https://www.festo.com/Drive-Sensor-Overview
|
|
Measured variable
|
Position
|
|
Measuring principle
|
Magnetic Hall
|
|
Ambient temperature
|
-40 °C ... 85 °C
|
|
Max. travel speed
|
3 m/s
|
|
Repetition accuracy
|
0.1 mm
|
|
Switching output
|
PNP/NPN, switchable
|
|
Switching element function
|
N/C or N/O contact, switchable
|
|
Hysteresis
|
0.2 mm
|
|
Switch-on time
|
≤2 ms
|
|
Switch-off time
|
≤2 ms
|
|
Max. switching frequency
|
200 Hz
|
|
Max. output current
|
100 mA
|
|
Max. output current using mounting kits
|
100 mA
|
|
Max. switching capacity DC
|
2.8 W
|
|
Max. switching capacity DC using mounting kits
|
2.8 W
|
|
Voltage drop
|
<1.5 V
|
|
Min. load current
|
0.15 mA
|
|
Off-state current
|
<0.2 mA
|
|
Short circuit current rating
|
yes
|
|
Overload protection
|
Available
|
|
Rated operational voltage DC
|
24 V
|
|
Operational voltage range DC
|
10 V ... 30 V
|
|
Reverse polarity protection
|
For all electrical connections
|
|
Electrical connection 1, connection type
|
Cable with plug
|
