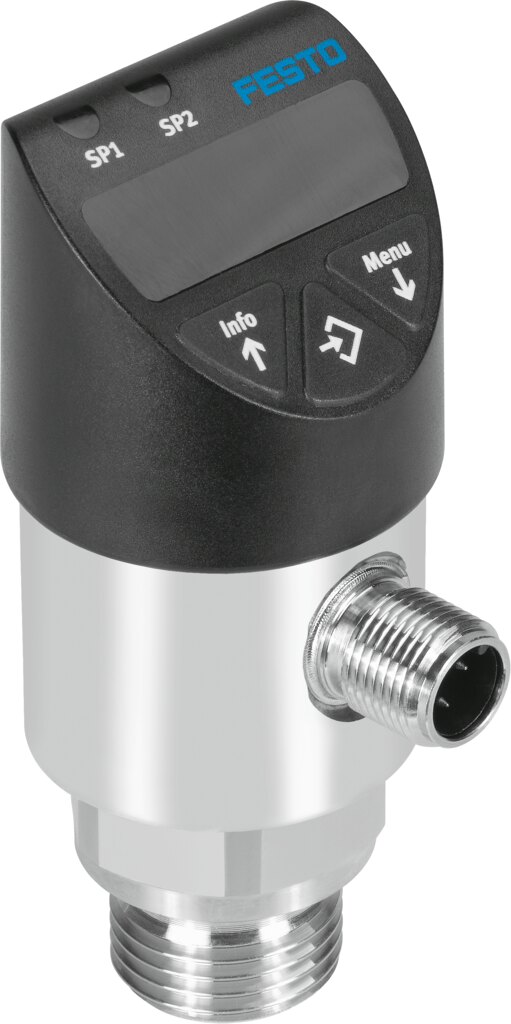

Authorisation
|
RCM Mark
c UL us - Listed (OL)
|
|
CE mark (see declaration of conformity)
|
to EU directive for EMC
|
|
Materials note
|
Contains PWIS substances Conforms to RoHS
|
|
Measured variable
|
Relative pressure
|
|
Measurement method
|
Thin metal film pressure sensor
|
|
Pressure measuring range, initial value
|
-1 bar
|
|
Pressure measuring range, final value
|
10 bar
|
|
Overload range
|
20 bar
|
|
Operating medium
|
Compressed air in accordance with ISO8573-1:2010 [-:-:-]
Gaseous media
Fluid media
|
|
Medium temperature
|
-20 ... 85 °C
|
|
Ambient temperature
|
0 ... 80 °C
|
|
Accuracy, FS
|
1 %FS
|
|
Repetition accuracy in ± %FS
|
0.15 %FS
|
|
Switch output
|
2xNPN
|
|
Switching function
|
Freely programmable
|
|
Switching element function
|
Switchable
|
|
Max. output current
|
250 mA
|
|
Analogue output
|
4 - 20 mA
|
|
Rise time
|
3 ms
|
|
Short circuit strength
|
Yes
|
|
Operating voltage range DC
|
15 ... 35 V
|
|
Polarity protected
|
for operating voltage
|
|
Electrical connection
|
Plug
Round design
to EN 60947-5-2
M12x1
5-pin
|
|
Mounting type
|
with external (male) thread
|
|
Pneumatic connection
|
Male thread G1/2
|
|
Product weight
|
230 g
|
|
Material housing
|
ABS
High alloy steel, non-corrosive
|
|
Materials in contact with media
|
High alloy steel, non-corrosive
|
|
Material sealing ring
|
NBR
|
|
Type of display
|
4-place alphanumeric
LED display
|
|
Unit(s) that can be displayed
|
MPa
bar kPa kg/cm²
|
